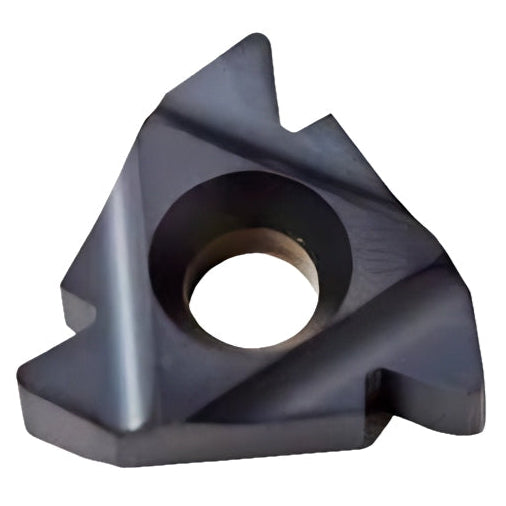

Carmex External Right Hand Trapez Thread Turning Insert 5mm / 22 ER 5 TR BMA

SKU: 22 ER 5 TR BMA

Price:
Sale price$57.02

Tax included Shipping calculated at checkout

Stock:
Only 1 unit left

Description

External Thread Turning Insert – Trapez Full Profile

The Trapez Full Profile External Thread Turning Insert is designed for producing precise trapez threads as per DIN 103 standards. With a 5 mm pitch and full profile geometry, this insert is optimized for high-performance external threading operations, forming complete thread profiles in a single pass.

Manufactured from robust BMA-grade carbide, the insert delivers exceptional wear resistance and stability under demanding machining conditions. The left-hand cutting orientation is ideal for specialized threading setups, while the optimized X and Y dimensions ensure smooth chip flow and consistent thread form.

Key Features:

  • Ordering Code: 22 ER 5 TR BMA

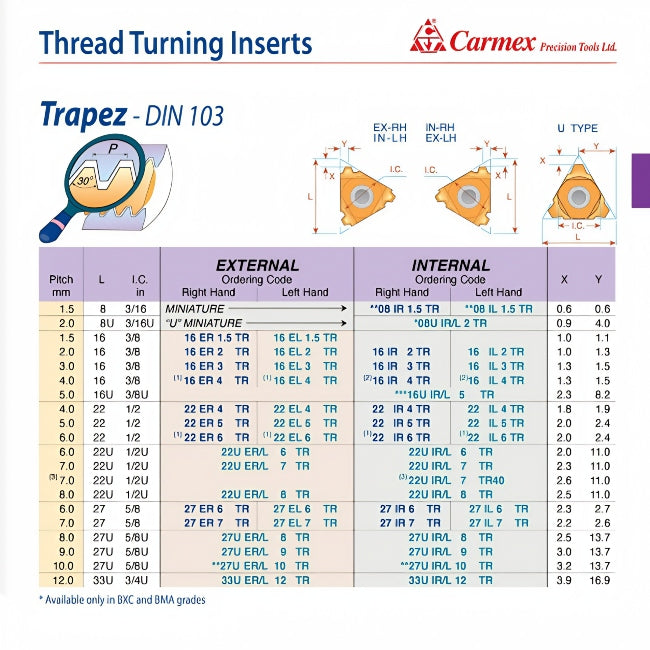

  • Thread Type: Trapez (DIN 103)
  • Profile: Full Form
  • Insert Type: External
  • Hand: Left Hand
  • L: 22 mm
  • I.C.: 1/2"
  • Pitch: 5 mm
  • X: 2.0 mm
  • Y: 2.4 mm
  • Carbide Grade: BMA
  • Applications: External Thread Turning for Trapez Thread Forms
  • Key Advantage: High-accuracy thread form with durable cutting edges for long tool life

Carmex Precision Tools Ltd. is a global leader in the design and manufacture of cutting tools for threading applications. Their advanced line of thread turning inserts, including solutions for ISO, ACME, TR, and oilfield threads, supports the highest standards of accuracy, durability, and efficiency across a wide range of materials and industries.
