External Thread Turning Insert – Trapez Full Profile

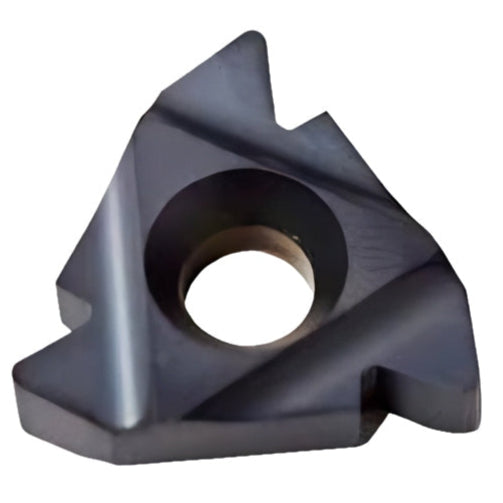

The Trapez Full Profile External Thread Turning Insert is specifically designed for producing trapez threads in accordance with DIN 103 standards. With a 7 mm pitch, this insert forms the complete thread profile—including the crest, root, and flanks—making it ideal for high-load applications such as lead screws, machine components, and linear motion systems.

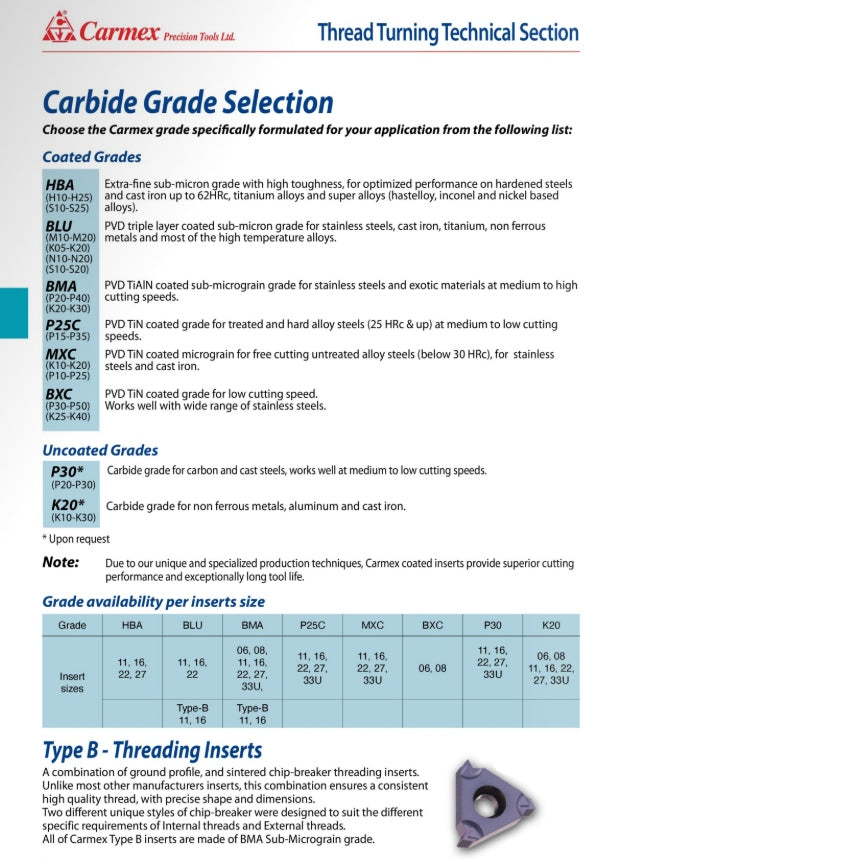

Engineered from durable BMA-grade carbide, the insert delivers exceptional wear resistance, toughness, and cutting consistency. Its geometry, with an insert length of 27 mm and a 5/8" I.C., is optimized for heavy-duty threading operations, while the X and Y dimensions (2.2 mm and 2.6 mm) ensure reliable chip control and clean thread profiles.
Key Features:

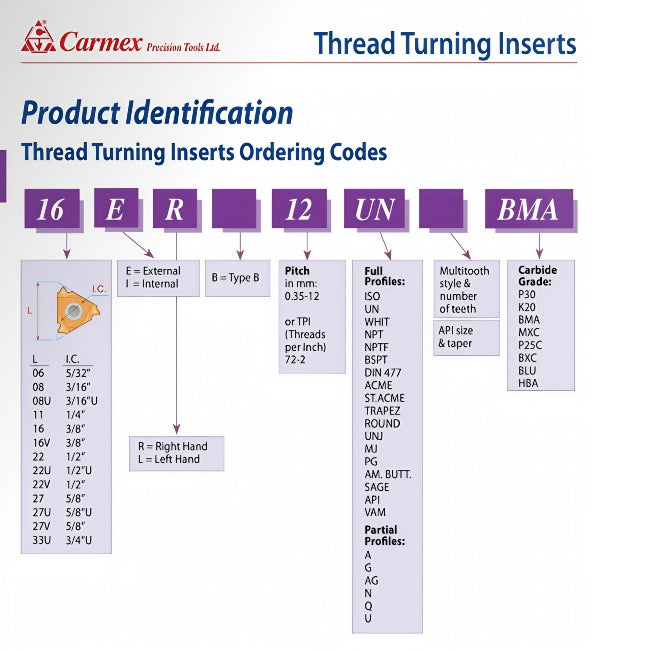

- Ordering Code: 27 ER 7 TR BMA

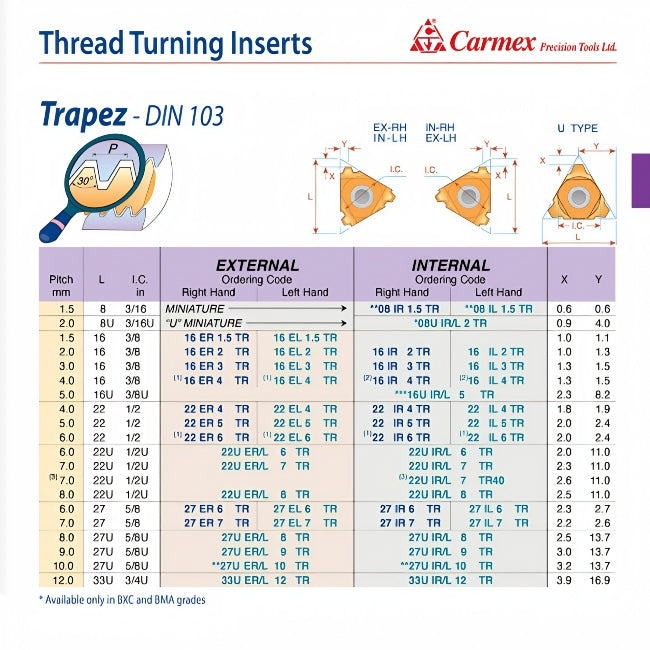

- Thread Type: TR (Trapez – DIN 103)
- Profile: Full Form
- Insert Type: External
- Hand: Right Hand
- L: 27 mm
- I.C.: 5/8"
- Pitch: 7 mm
- X: 2.2 mm
- Y: 2.6 mm
- Carbide Grade: BMA
- Applications: External Thread Turning for Trapez Thread Forms (DIN 103)
- Key Advantage: Reliable full-profile thread generation with high strength and precision
Carmex Precision Tools Ltd. is a global leader in the design and manufacture of high-quality threading tools. Their comprehensive product portfolio includes Thread Turning Inserts, Mill Thread systems, and Solid Carbide threadmills, delivering performance and precision across a wide range of industrial applications.
