Description

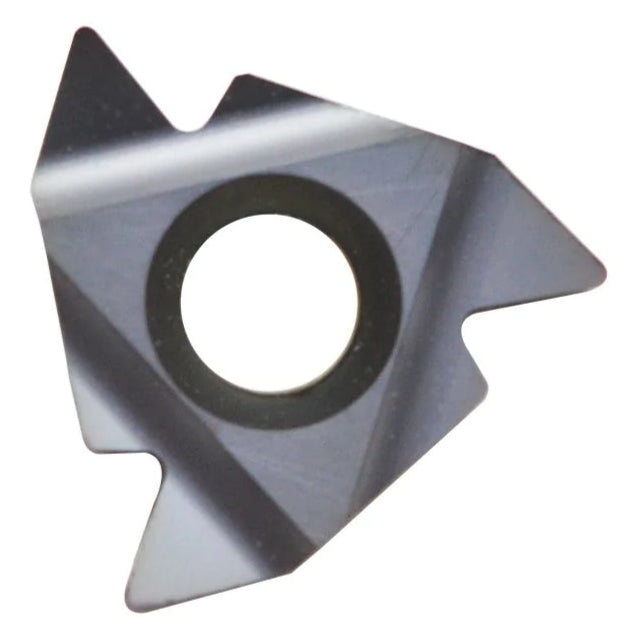

External Thread Turning Insert – UN Full Profile 60°
The UN Full Profile External Thread Turning Insert is engineered for the accurate and efficient production of Unified threads (UNC, UNF, UNEF, UNS). With a 60° thread angle and 5 TPI pitch, this insert forms the complete profile—crest, root, and flanks—in a single pass, ensuring strong and precise threads for high-load applications.
Manufactured from durable BMA-grade carbide, the insert offers excellent wear resistance, thermal stability, and consistent cutting performance. The optimized X and Y geometry (1.6 mm and 2.3 mm) ensures smooth chip flow and reliable threading results, even in tough materials and high-volume production environments.
Key Features:

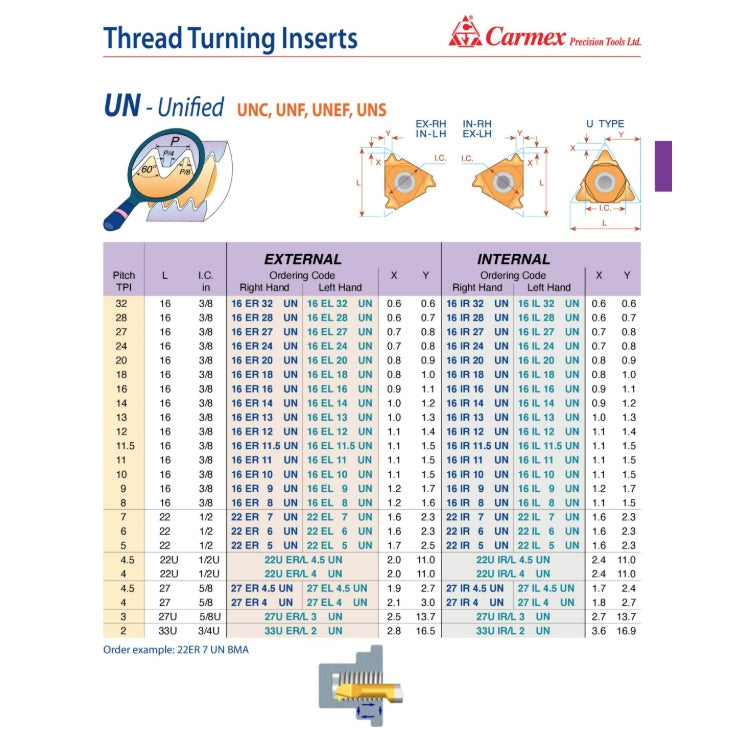

- Ordering Code: 22 ER 5 UN BMA
- Thread Type: UN (Unified Thread Standard – 60°)
- Profile: Full Form
- Insert Type: External
- Hand: Right Hand
- L: 22 mm
- I.C.: 1/2"
- Pitch: 5 TPI
- X: 1.6 mm
- Y: 2.3 mm
- Carbide Grade: BMA
- Applications: External Thread Turning for UN Thread Forms
- Key Advantage: Full-profile threading with high tool life, strength, and dimensional precision
Carmex Precision Tools Ltd. is a global leader in high-performance threading tools. With advanced solutions for turning and milling, Carmex delivers accuracy, durability, and efficiency across diverse machining industries. Their extensive product range includes Thread Turning Inserts, Mill Thread systems, and Solid Carbide threadmills.
