Carmex Internal CMT Vertical Threadmill Insert ISO 12.4mm/ 2.0mm pitch

SKU: C12 I 2.0 ISO MT7

Price:
Sale price$143.51

Tax included Shipping calculated at checkout

Stock:
Only 3 units left

Description

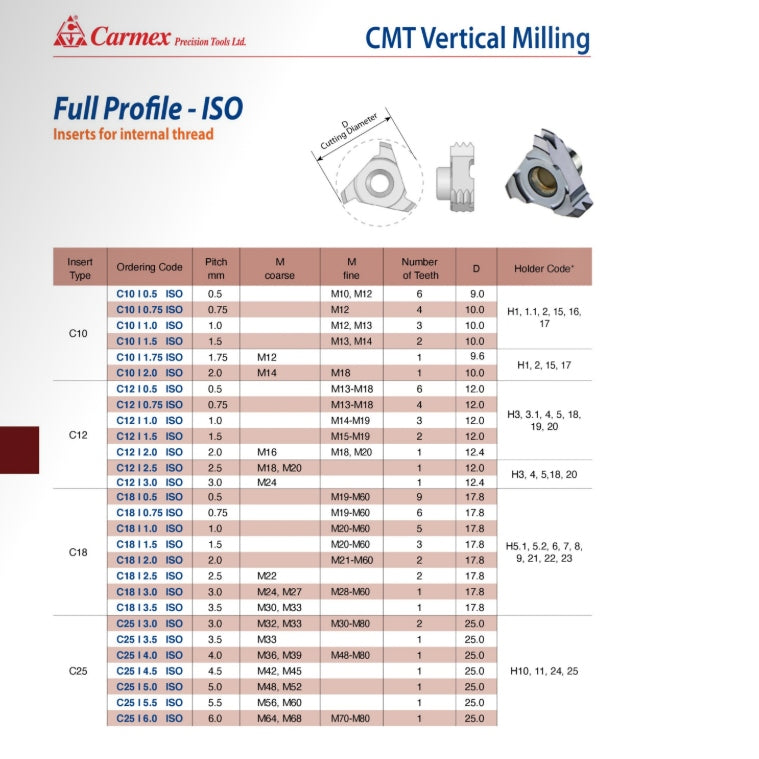

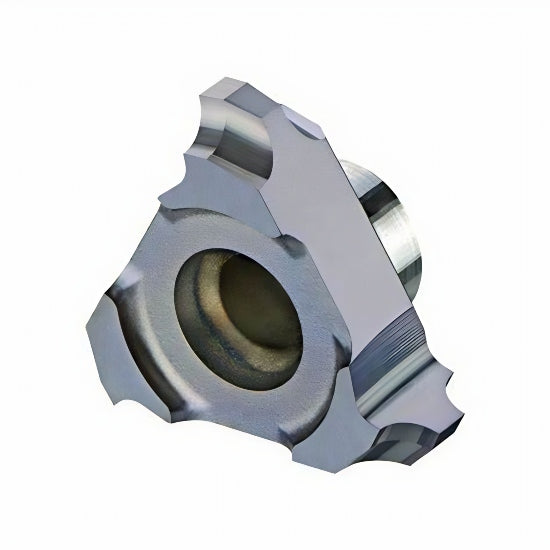

CMT Vertical Milling Tool – C12 Insert, Internal Threading for ISO Full Profile

The CMT C12 Vertical Milling Tool is engineered for internal thread milling applications requiring precision and performance in ISO full-profile threads. Designed to work with C12 inserts, this tool is well-suited for coarse thread profiles such as M16. With a cutting diameter of 12.4 mm and a single-tooth configuration, it delivers optimal chip evacuation and high-accuracy threading in deep or narrow bores.

The tool is constructed with MT7 carbide grade, featuring a titanium aluminum nitride multi-layer coating (ISO K10–K20), which enables high-speed machining and extends tool life across a wide range of materials. Integrated internal coolant and a precision clamping system further support thermal control and secure operation under demanding conditions.

Key Features:

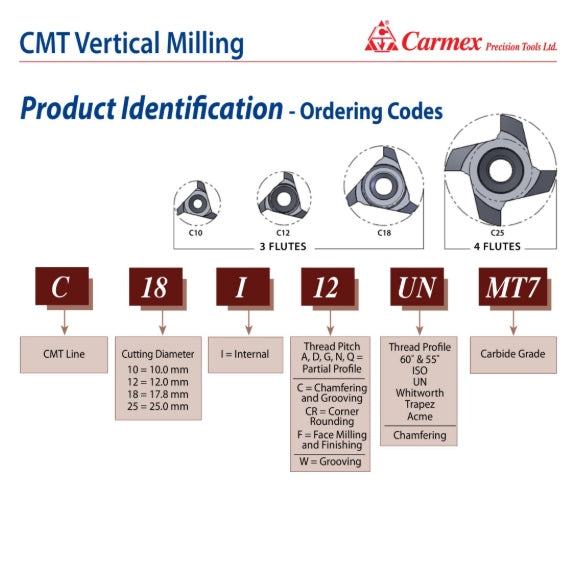

  • Ordering code: C12I20ISOMT7
  • Tool Type: CMT Vertical Milling – Internal Threading
  • Insert Type: C12
  • Thread Sizes:
    • M Coarse: M16
    • M Fine: M18, M20
  • Cutting Diameter (D): 12.4 mm
  • Number of Teeth: 1
  • Pitch: 2.0 mm
  • Carbide Grade: MT7
  • Coolant: Internal coolant bore
  • Clamping: High-accuracy solid clamp system
  • Compatibility: Right- and left-hand thread milling
  • Holder Code: H3, 3.1, 4, 5, 18, 19, 20

Carmex Precision Tools Ltd. is a leading manufacturer of high-quality cutting tools. Carmex specializes in the production of threading tools for turning and milling. The product lines include Thread Turning inserts and toolholders, Mill Thread inserts and tool holders, Mill-Thread Solid Carbide, and Spiral Mill Thread—offering complete solutions for advanced CNC threading and grooving applications.
