Description

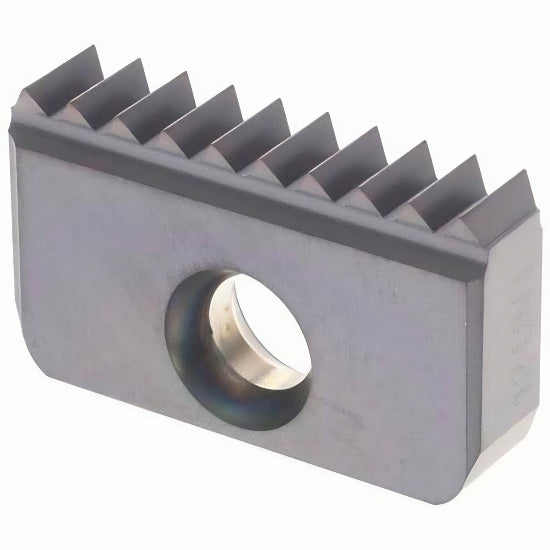

Mill-Thread Insert – ISO 3.0 mm Pitch, Internal
The 30 I 3.0 ISO MT7 Mill-Thread Insert is designed for internal threading of ISO metric profiles on CNC milling machines using helical interpolation. With a 3.0 mm pitch, this insert is ideal for machining medium-pitch ISO threads in a wide range of industrial components. The size 30 insert, featuring a 16 mm height and 5.5 mm thickness, ensures accurate thread profile generation, effective chip evacuation, and excellent cutting stability in demanding applications.
Made from Carmex’s proven MT7 carbide grade, this insert offers exceptional wear resistance, thermal strength, and extended tool life under high-load conditions. It is fully compatible with SR series toolholders offered in various configurations including single, twin, and multi-insert holders with options for internal coolant and reinforced carbide shanks, delivering superior clamping and machining precision.
Key Features:

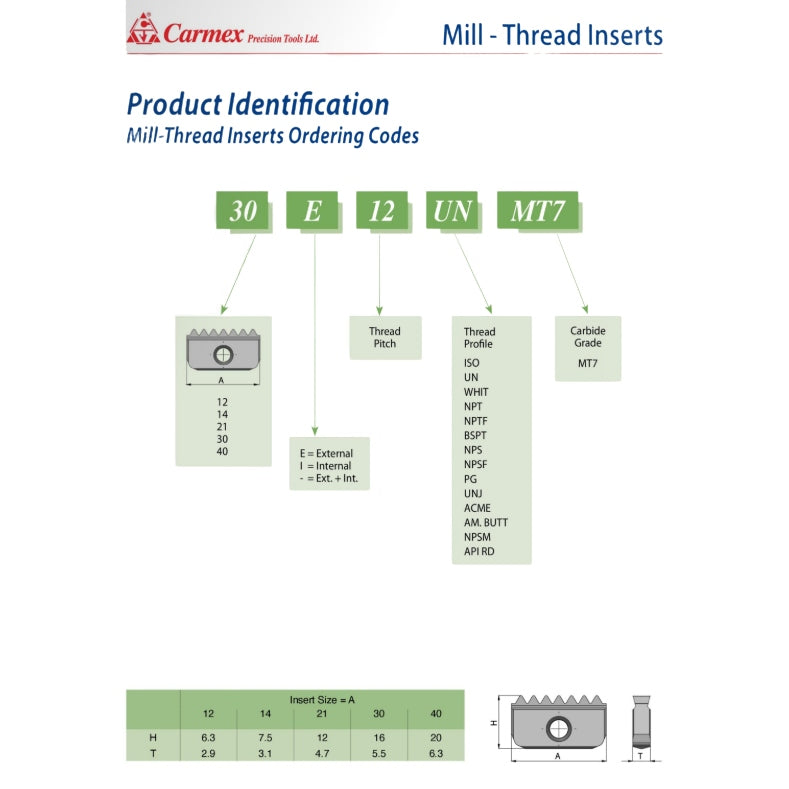

- Ordering Code: 30 I 3.0 ISO MT7
- Thread Type: Internal Threading
- Thread Profile: ISO – Metric
- Pitch (mm): 3.0
- Insert Size: 30
- H (Height): 16 mm
- T (Thickness): 5.5 mm
- Carbide Grade: MT7
- Insert Type: Internal-use only
- Applications: Medium-pitch ISO internal threads in industrial and general-purpose components
- Key Advantage: Consistent threading results with SR series toolholder compatibility
Carmex Precision Tools Ltd. is globally recognized for its advanced threading solutions. The company offers a full range of Thread Turning inserts, Mill-Thread tools, Spiral Mill-Thread, Solid Carbide threadmills, and SR Series Toolholders ensuring complete performance and compatibility from insert to toolholder.
