Description
Mill-Thread Insert – ISO 4.0 mm Pitch, Internal

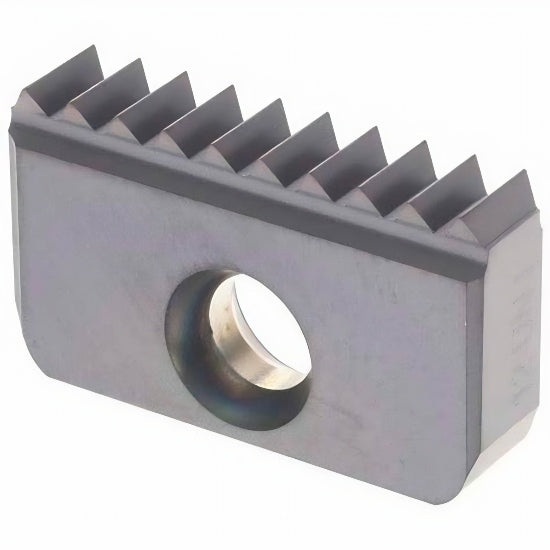

The 40 I 4.0 ISO MT7 Mill-Thread Insert is engineered for internal threading of ISO metric profiles on CNC milling machines using helical interpolation. Designed for a 4.0 mm pitch, this insert is suited for creating coarse internal threads in larger components across industrial and mechanical applications. With a size 40 profile, 20 mm height, and 6.3 mm thickness, the insert ensures high rigidity, accurate thread form, and efficient chip control during demanding cutting operations.
Manufactured from Carmex’s high-performance MT7 carbide grade, this insert delivers excellent durability, wear resistance, and thermal stability, even under high-stress conditions. To maximize performance, it integrates seamlessly with SR series toolholders available in single, twin, and multi-insert formats, including internal coolant channels and carbide shanks for precision and long service life.
Key Features:

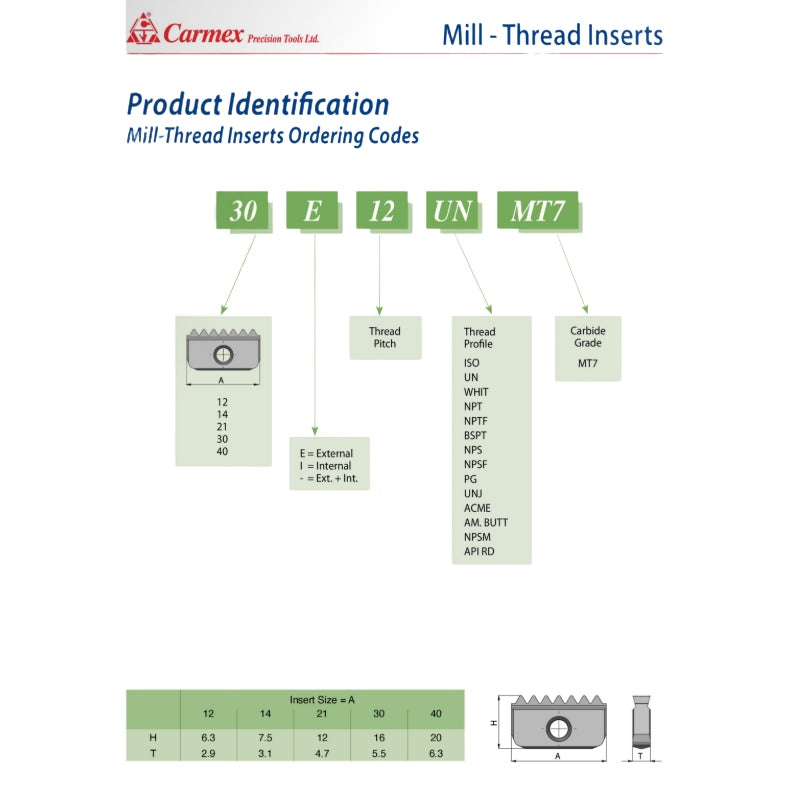

- Ordering Code: 40 I 4.0 ISO MT7
- Thread Type: Internal Threading
- Thread Profile: ISO – Metric
- Pitch (mm): 4.0
- Insert Size: 40
- H (Height): 20 mm
- T (Thickness): 6.3 mm
- Carbide Grade: MT7
- Insert Type: Internal-use only
- Applications: ISO metric threads in medium-to-large industrial parts requiring robust thread profiles
- Key Advantage: Strong, accurate threading with full compatibility to SR series toolholders
Carmex Precision Tools Ltd. is globally recognized for its advanced threading solutions. The company offers a full range of Thread Turning inserts, Mill-Thread tools, Spiral Mill-Thread, Solid Carbide threadmills, and SR Series Toolholders ensuring complete performance and compatibility from insert to toolholder.
