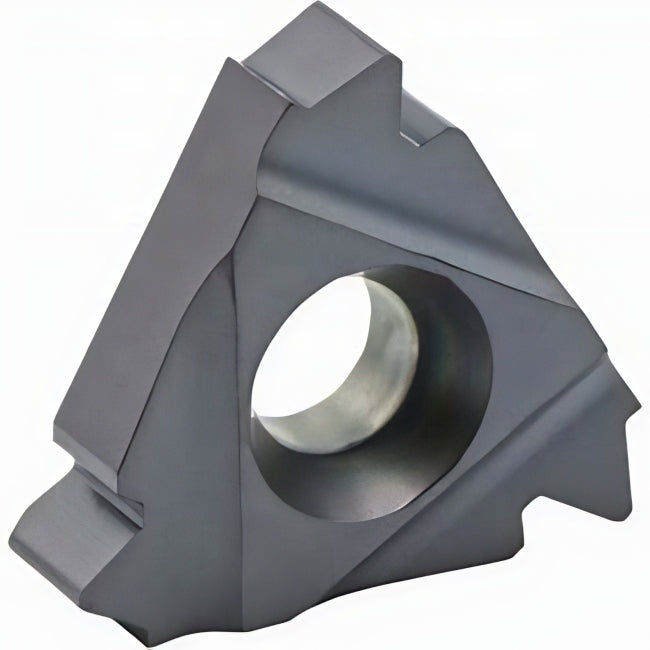

Internal Thread Turning Insert – ACME Full Profile 29°
The ACME Full Profile Internal Thread Turning Insert is specially designed for producing precise 29° ACME threads, ideal for power transmission and linear motion systems. With a 16 TPI pitch, this insert forms the complete thread profile including crest, root, and flanks in a single operation, ensuring high thread strength and accuracy.
Manufactured from high-quality BMA-grade carbide, this insert offers superior wear resistance, edge retention, and thermal stability. Its optimized X and Y geometry ensures smooth cutting action and consistent chip control, delivering excellent performance in internal threading across a wide range of materials.
Key Features:
- Ordering Code: 16 IR 16 ACME BMA
- Thread Type: ACME (29°)
- Profile: Full Form
- Insert Type: Internal
- Hand: Right Hand
- L: 16 mm
- I.C.: 3/8"
- Pitch: 16 TPI
- X: 0.9 mm
- Y: 1.0 mm
- Carbide Grade: BMA
- Applications: Internal Thread Turning for ACME Threads
- Key Advantage: Full-profile threading with high durability, accuracy, and efficient chip evacuation
Carmex Precision Tools Ltd. is a globally recognized leader in the development and manufacturing of high-quality cutting tools. With a strong focus on innovation and precision, Carmex offers a comprehensive range of solutions for threading, turning, and milling applications. From Thread Turning Inserts and Toolholders to Mill Thread systems and Solid Carbide threadmills, Carmex products are trusted by professionals worldwide for their reliability, accuracy, and exceptional performance across diverse industries and materials.
