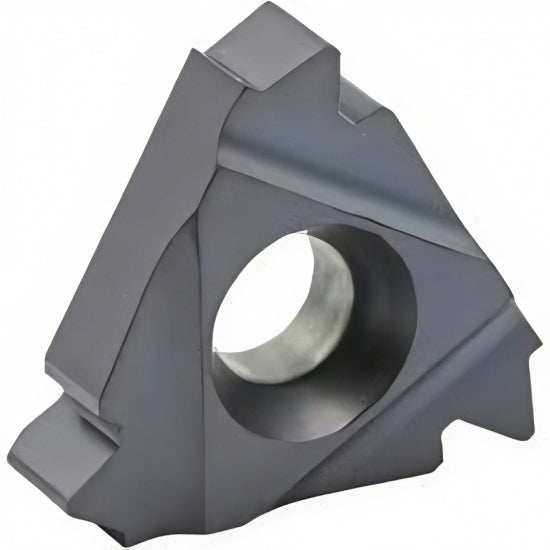

Internal Thread Turning Insert – ACME Full Profile
The ACME Full Profile Internal Thread Turning Insert is specifically designed for precision machining of ACME threads, ideal for applications demanding strong, load-bearing threads such as linear motion systems and power transmission. With a pitch of 4 TPI, this insert accurately forms the complete thread profile—crest, root, and flanks—in one operation.
Crafted from durable BMA-grade carbide, the insert provides outstanding wear resistance, heat tolerance, and dimensional stability. Its optimized cutting geometry, including X and Y dimensions of 2.1 mm and 2.2 mm respectively, ensures consistent engagement and efficient chip evacuation during internal threading processes.
Key Features:

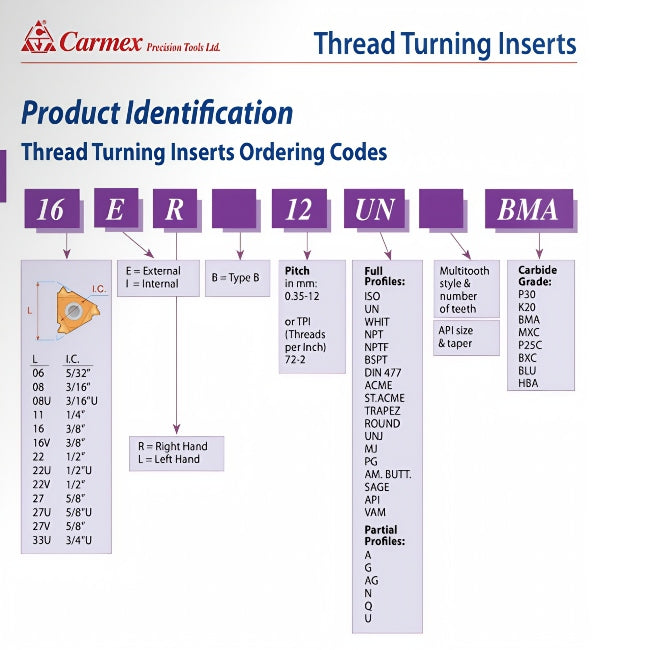

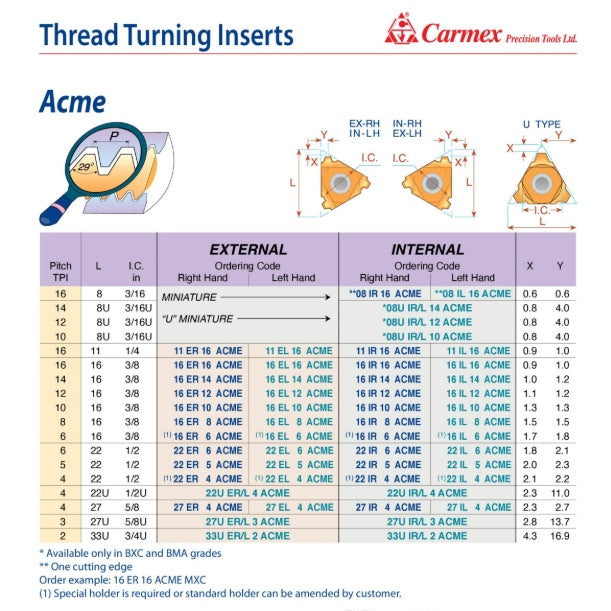

- Ordering Code: 22 IR 4 ACME BMA
- Thread Type: ACME
- Profile: Full Form
- Insert Type: Internal
- Hand: Right Hand
- L: 22 mm
- I.C.: 1/2"
- Pitch: 4 TPI
- X: 2.1 mm
- Y: 2.2 mm

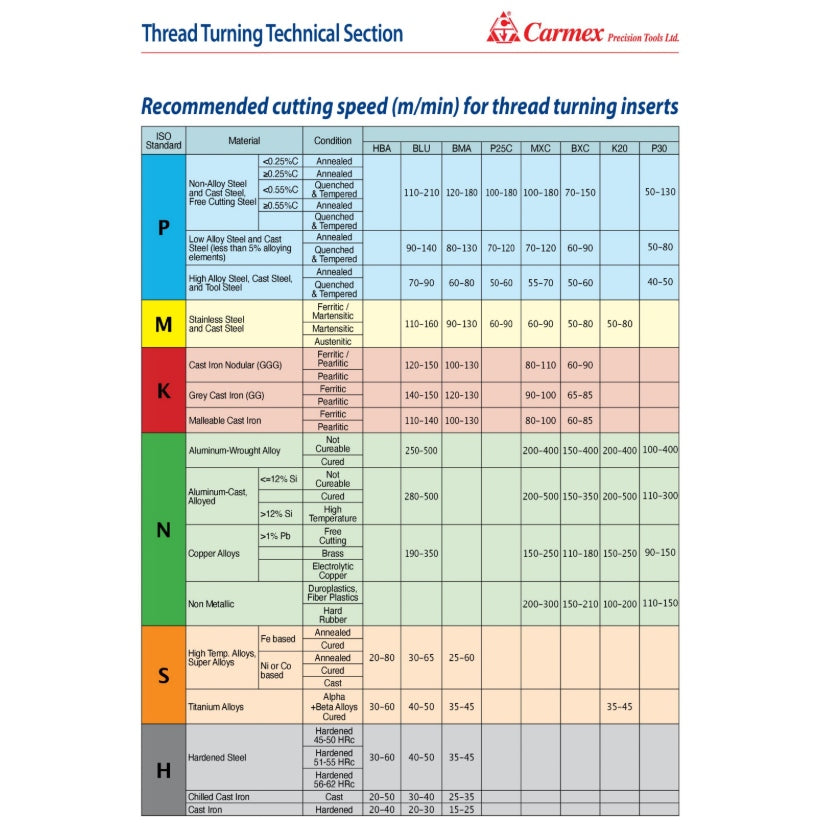

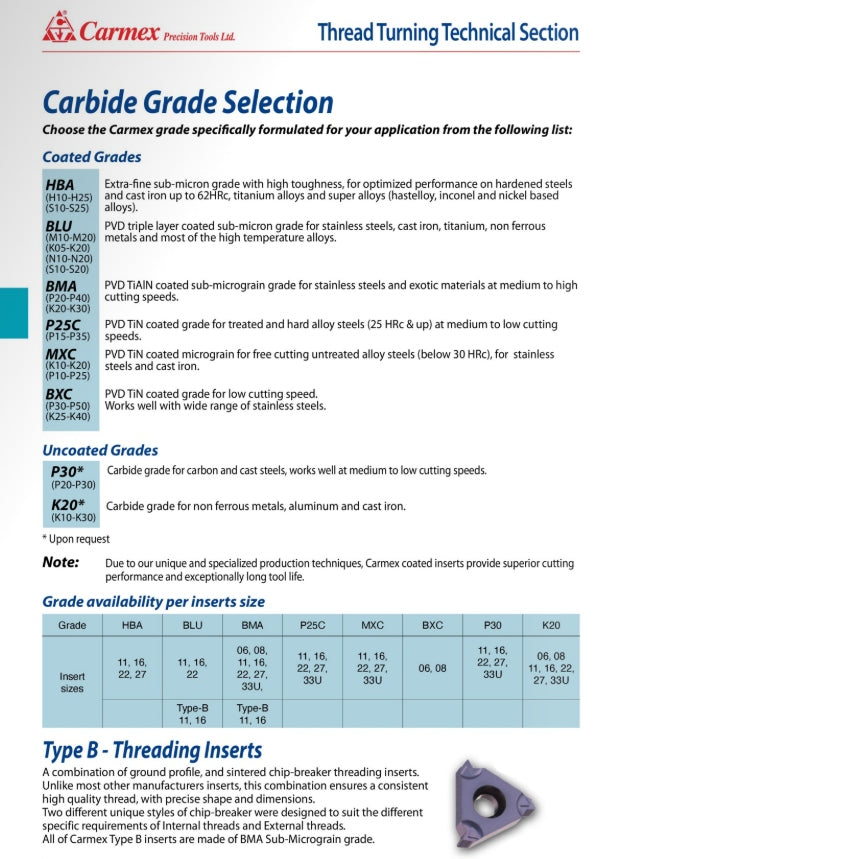

- Carbide Grade: BMA
- Applications: Internal Thread Turning for ACME Thread Forms
- Key Advantage: Full-profile, load-bearing thread creation with high durability
