Description

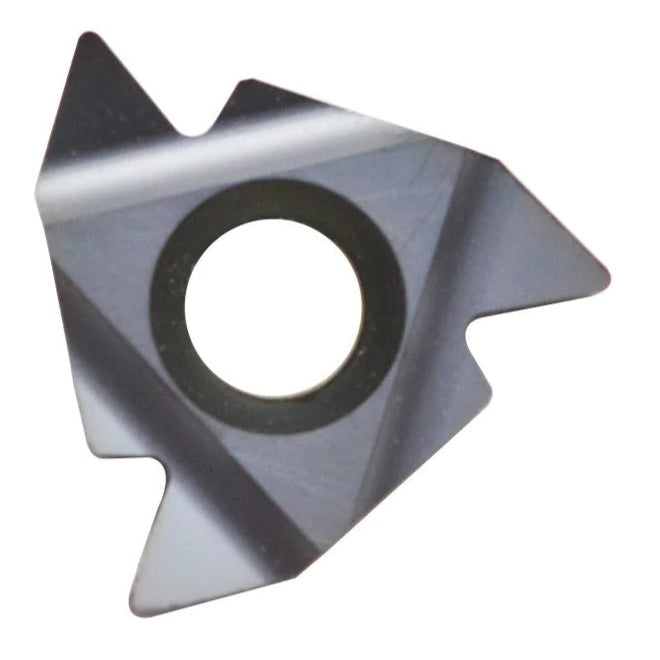

Internal Thread Turning Insert – ISO Full Profile 60°
The ISO Full Profile Internal Thread Turning Insert is designed to accurately produce metric threads with a 60° profile in accordance with ISO standards. With a 2.0 mm pitch, this insert ensures precise thread form—including root, crest, and flanks—completed in one efficient pass for high-performance threading operations.
Crafted from durable BMA-grade carbide, this insert delivers outstanding wear resistance, edge integrity, and thermal stability. The optimized X and Y dimensions contribute to smooth thread engagement, excellent chip control, and consistent dimensional accuracy, even in challenging materials.
Key Features:
- Ordering Code: 16 IR 2.0 ISO BMA
- Thread Type: ISO (Metric Thread Standard – 60°)
- Profile: 60° Full Form
- Insert Type: Internal
- Hand: Right Hand
- L: 16 mm
- I.C.: 3/8"
- Pitch: 2.0 mm
- X: 1.0 mm
- Y: 1.3 mm
- Carbide Grade: BMA
- Applications: Internal Thread Turning for ISO Metric Threads
- Key Advantage: Full-profile threading with superior precision, wear resistance, and process efficiency
Carmex Precision Tools Ltd. is a globally recognized leader in the development and manufacturing of high-quality cutting tools. With a strong focus on innovation and precision, Carmex offers a comprehensive range of solutions for threading, turning, and milling applications. From Thread Turning Inserts and Toolholders to Mill Thread systems and Solid Carbide threadmills, Carmex products are trusted by professionals worldwide for their reliability, accuracy, and exceptional performance across diverse industries and materials.
