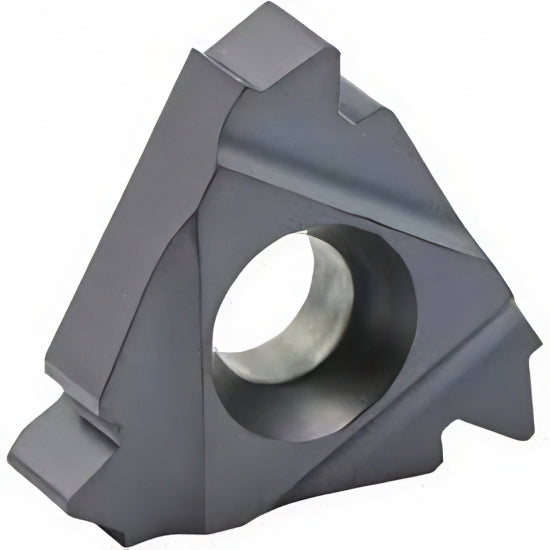

Internal Thread Turning Insert – Stub ACME 29°
The Stub ACME Internal Thread Turning Insert is designed for precision machining of Stub ACME threads with a 29° profile. Tailored for 6 TPI threading, this full-profile insert accurately forms the thread’s crest, root, and flanks in a single operation providing high-strength, backlash-free connections commonly required in power transmission, mechanical actuators, and motion control components.
Constructed from high-grade BMA carbide, the insert ensures excellent wear resistance, thermal stability, and consistent edge performance. Its optimized dimensions X and Y both at 1.8 mm offer rigidity and control for efficient internal threading, especially in medium to large bore diameters.
Key Features:
- Ordering Code: 22 IR 6 STACME BMA
- Thread Type: Stub ACME (29°)
- Profile: 29° Full Form
- Insert Type: Internal
- Hand: Right Hand
- L: 22 mm
- I.C.: 1/2"
- Pitch: 6 TPI
- X: 1.8 mm
- Y: 1.8 mm
- Carbide Grade: BMA
- Applications: Internal Thread Turning for Stub ACME Threads in Motion and Load Transfer Systems
- Key Advantage: High-accuracy full-profile threading with excellent wear life and performance on medium-pitch Stub ACME threads
