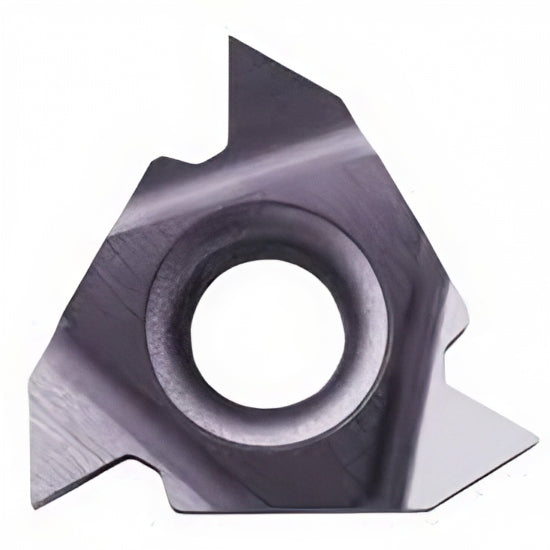

Carmex Internal Right Hand UN Unified Thread Turning Insert 5 TPI / 22 IR 5 UN BMA

SKU: 22 IR 5 UN BMA

Price:
Sale price$49.54

Tax included Shipping calculated at checkout

Stock:
Only 21 units left

Description

Internal Thread Turning Insert – UN Full Profile 60°

The UN Full Profile Internal Thread Turning Insert is engineered for producing Unified thread forms (UNC, UNF, UNEF, UNS) with high precision. Designed for a 5 TPI pitch, this insert creates the full thread profile—including crest, root, and flanks—in one efficient pass, ensuring thread integrity and strength.

Manufactured from premium BMA-grade carbide, the insert provides excellent wear resistance, heat stability, and tool life. Its right-handed configuration supports precise and consistent internal threading in tough materials, ideal for demanding industrial applications.

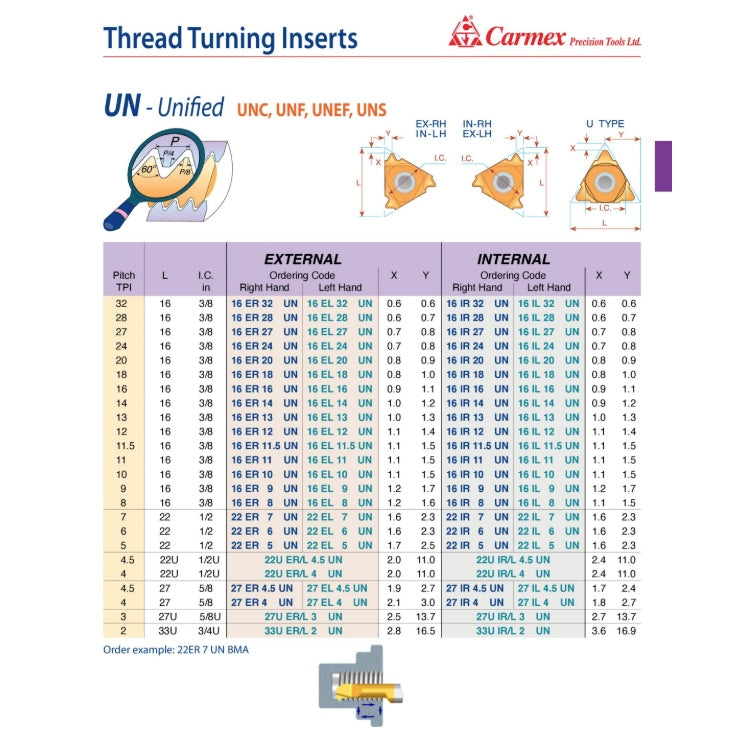

Key Features:

  • Ordering Code: 22 IR 5 UN BMA
  • Thread Type: UN (Unified Thread Standard – 60°)
  • Profile: 60° Full Form
  • Insert Type: Internal
  • Hand: Right Hand
  • L: 22 mm
  • I.C.: 1/2"
  • Pitch: 5 TPI
  • X: 1.6
  • Y: 2.3
  • Carbide Grade: BMA
  • Applications: Internal Thread Turning for Unified Thread Forms (UNC/UNF/UNEF/UNS)
  • Key Advantage: Complete thread generation with durability and precision

Carmex Precision Tools Ltd. is a global leader in the design and manufacture of high-performance threading and cutting tools. Their broad product portfolio includes solutions for turning, milling, and holemaking, trusted by precision machining professionals worldwide.
