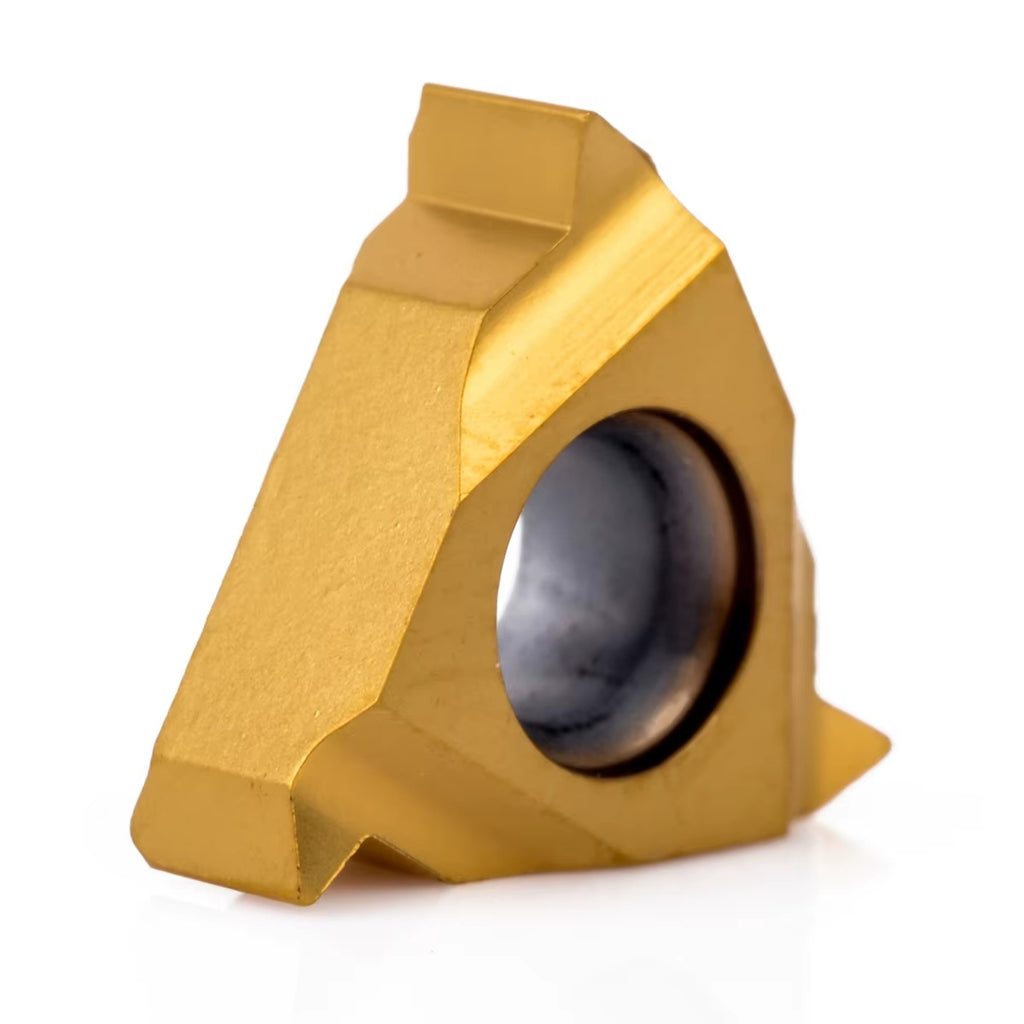

Internal Thread Turning Insert – UN Full Profile 60°
The UN Full Profile Internal Thread Turning Insert is engineered for machining Unified threads (UNC, UNF, UNEF, UNS) with a 60° profile. With a 9 TPI pitch, this insert delivers full-profile thread formation—including crest, root, and flanks—in a single pass, ensuring high-strength, accurate internal threads for structural and mechanical applications.
Manufactured from premium P25C-grade carbide, the insert provides outstanding wear resistance, cutting edge integrity, and thermal stability. The optimized X and Y geometry (1.2 mm and 1.7 mm) promotes precise engagement, smooth chip evacuation, and dependable performance across a wide range of materials and operating conditions.
Key Features:

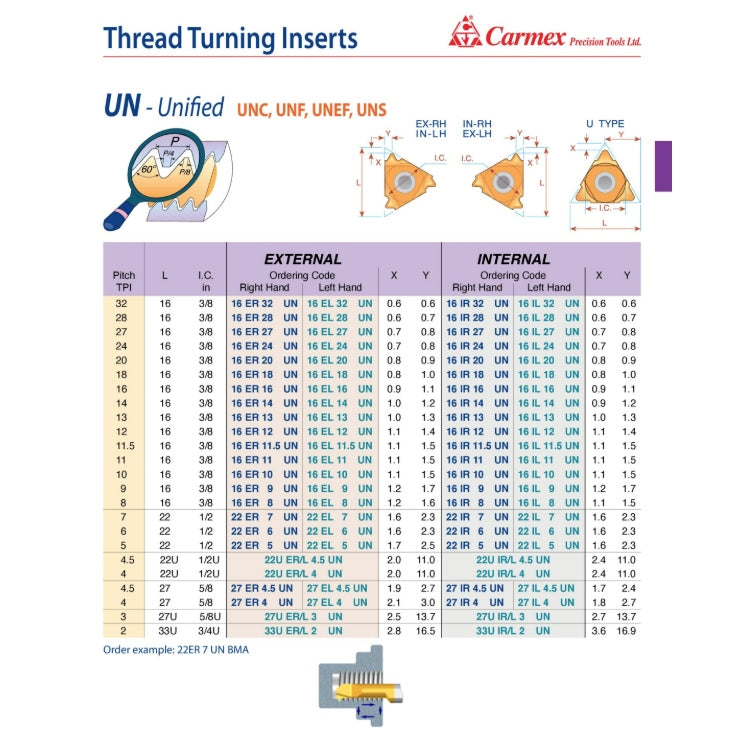

- Ordering Code: 16 IR 9 UN P25C
- Thread Type: UN (Unified Thread Standard – 60°)
- Profile: 60° Full Form
- Insert Type: Internal
- Hand: Right Hand
- L: 16 mm
- I.C.: 3/8"
- Pitch: 9 TPI
- X: 1.2 mm
- Y: 1.7 mm
- Carbide Grade: P25C
- Applications: Internal Thread Turning for Unified Thread Forms
- Key Advantage: Reliable, full-profile threading with high accuracy, tool life, and chip control
Carmex Precision Tools Ltd. is a globally recognized leader in the development and manufacturing of high-quality cutting tools. With a strong focus on innovation and precision, Carmex offers a comprehensive range of solutions for threading, turning, and milling applications. From Thread Turning Inserts and Toolholders to Mill Thread systems and Solid Carbide threadmills, Carmex products are trusted by professionals worldwide for their reliability, accuracy, and exceptional performance across diverse industries and materials.
