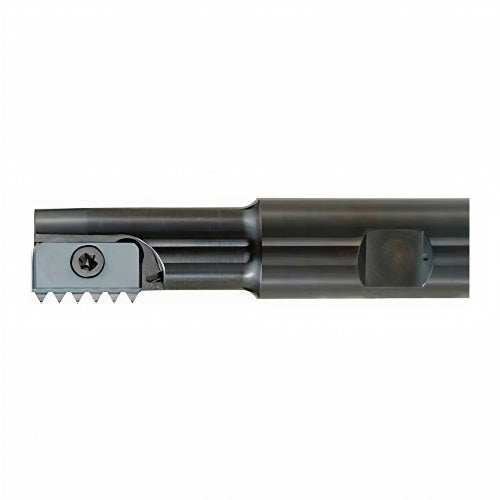

Mill-Thread Toolholder – SR0014H14, Ø14.5 mm, Single Insert with Internal Coolant
The SR0014H14 Mill-Thread Toolholder is designed for high-precision thread milling applications, featuring a 14.5 mm cutting diameter and an integrated internal coolant channel for enhanced chip removal and thermal control. Built for single insert use, this toolholder employs a reliable screw-clamping method, offering superior rigidity and consistent thread quality in demanding machining environments.

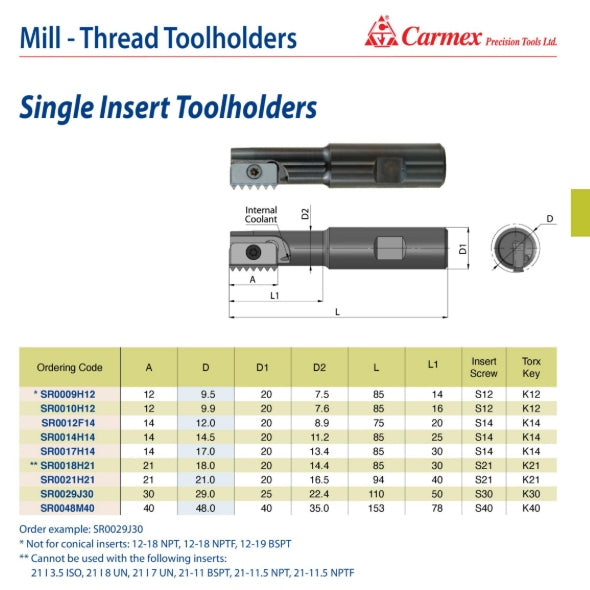

With a 14 mm insert pocket size, this toolholder is configured with robust dimensions: 20 mm shank diameter (D1), 11.2 mm neck diameter (D2), an overall length of 85 mm, and a 25 mm projection length (L1). It is compatible with S14 insert screws and K14 Torx keys, making it a durable and efficient solution for threading across various materials and production volumes.
Key Features:

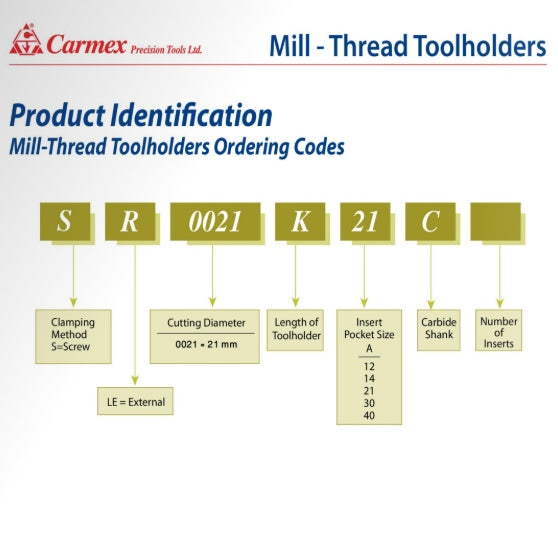

- Ordering Code: SR0014H14
- Toolholder Type: Single Insert Mill-Thread
- Coolant Supply: Internal Coolant Bore
- Clamping Method: Screw
- Insert Pocket Size (A): 14 mm
- Cutting Diameter (D): 14.5 mm
- D1: 20 mm
- D2: 11.2 mm
- L: 85 mm
- L1: 25 mm
- Insert Screw: S14
- Torx Key: K14
Carmex Precision Tools Ltd. is a globally recognized manufacturer of innovative cutting tools, offering an extensive range of Thread Turning inserts, Mill-Thread tools, Spiral Mill-Thread, and Solid Carbide threadmills delivering unmatched accuracy, durability, and performance in modern CNC machining.
