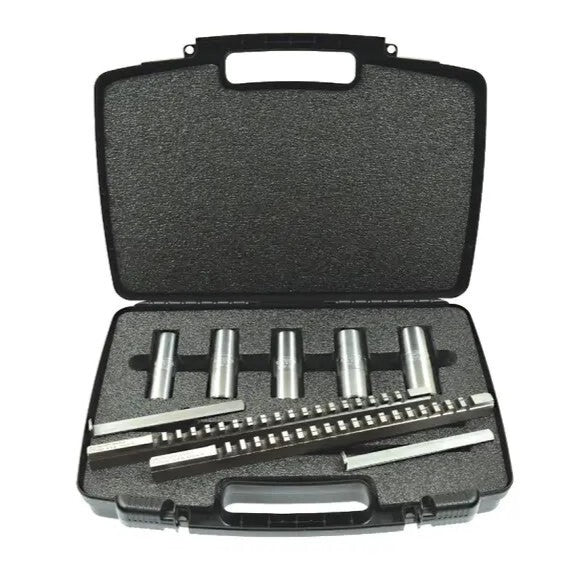

Imperial Dura-Case Broach Kit
The Hassay Savage Imperial Dura-Case Broach Kit is a comprehensive and organized cutting solution for producing precise keyways in machined holes. Designed for use with arbor or hydraulic presses, this set includes high-speed steel broaches and precision-matched bushings in a durable case. Built for efficiency, the broaches in this kit are ideal for cutting into a wide range of ferrous and non-ferrous materials such as steel, cast iron, and plastics. The set offers 36 different cutting combinations, making it perfect for machine shops that value versatility and clean results.
Key Features:
- Part Number: 15440
- Size Type: Metric
- Style: A,B,C
- Tool Material: High-Speed Steel (HSS)
- Hardness: 60 RC
- Minimum Length of Cut: 13/64", 19/64", 25/64"
- Maximum Length of Cut: 1-1/8", 1-11/16", 2-1/2"
- Broach Sizes: 2-A, 3-A, 4-B, 5-B, 6-C, 8-C
- Bushing Diameter: 8mm-A, 10mm-A, 12mm-B, 14mm-B, 16mm-B, 18mm-B, 18mm-C, 19mm-C, 20mm-C, 22mm-C, 24mm-C, 25mm-C, 26mm-C, 28mm-C, 30mm-C, 32mm-C, 34mm-C, 36mm-C
- Includes: 6 Broaches, 18 Bushings
- Number of Combinations: 36
- Case Material: Plastic
- Measurement Type: Inch
- First Choice For: Steel
- Workpiece Material Range: Steel, Non-Ferrous Metals, Cast Iron, Plastics
- Compliance: Prop. 65 Compliant
The Hassay Savage Imperial Dura-Case Broach Kit is an essential toolset for shops requiring precision, organization, and versatility in keyway cutting. Perfect for both routine jobs and complex applications, this all-in-one set helps ensure fast, accurate cuts with every use.
