Imperial Dura-Case Broach Kit

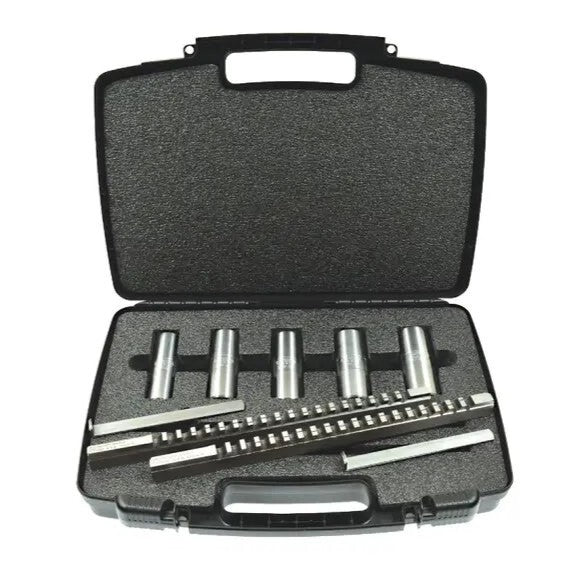

The Hassay Savage Imperial Dura-Case Broach Kit is a comprehensive and organized cutting solution for producing precise keyways in machined holes. Designed for use with arbor or hydraulic presses, this set includes high-speed steel broaches and precision-matched bushings in a durable case. Built for efficiency, the broaches in this kit are ideal for cutting into a wide range of ferrous and non-ferrous materials such as steel, cast iron, and plastics. The set offers 36 different cutting combinations, making it perfect for machine shops that value versatility and clean results.
Key Features:
- Part Number: 15330
- Size Type: Fractional
- Style: B,C
- Tool Material: High-Speed Steel (HSS)
- Hardness: 60 RC
- Minimum Length of Cut: 19/64", 25/65"
- Maximum Length of Cut: 1-11/16", 2-1/2"
- Broach Sizes: 1/8-B, 3/16-C, 1/4-C
- Bushing Diameter: 1/2"-B, 9/16"-B, 5/8"-B, 11/16"-B, 3/4"-B, 13/16"-B, 7/8"-B, 15/16"-C, 1"-C, 1-1/16"-C, 1-1/8"-C, 1-3/16"-C, 1-1/4"-C, 1-5/16"-C, 1-3/8"-C, 1-7/16"-C, 1-1/2"-C, 1-9/16"-C
- Includes: 3 Broaches, 18 Bushings
- Number of Combinations: 36
- Case Material: Plastic
- Measurement Type: Inch
- First Choice For: Steel
- Workpiece Material Range: Steel, Non-Ferrous Metals, Cast Iron, Plastics
- Compliance: Prop. 65 Compliant
The Hassay Savage Imperial Dura-Case Broach Kit is an essential toolset for shops requiring precision, organization, and versatility in keyway cutting. Perfect for both routine jobs and complex applications, this all-in-one set helps ensure fast, accurate cuts with every use.
