Description
Product Description:

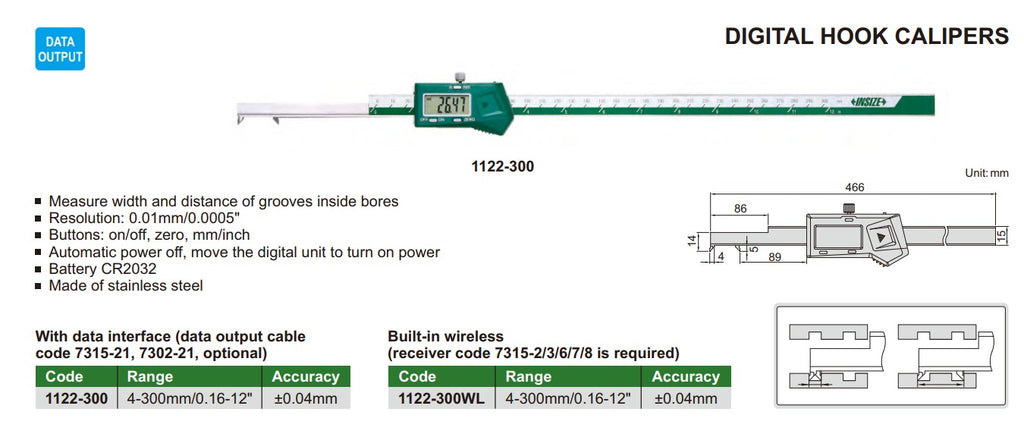

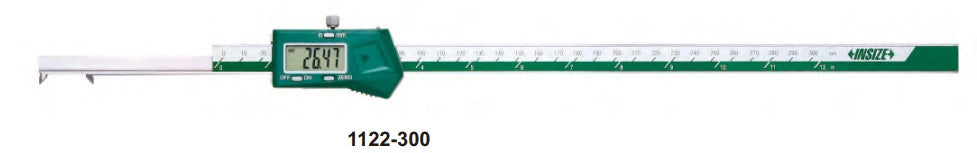

The INSIZE 1122-300 Digital Hook Caliper is designed for accurate internal measurements in demanding applications. With a measuring range of 0.16-12″ (4-300mm), it is ideal for checking the width and spacing of grooves inside bores or hard-to-reach internal features.
Crafted from durable stainless steel, this caliper features a hook-style jaw design for specialized internal measurements. The high-resolution digital display reads in 0.01mm / 0.0005″, and the caliper offers intuitive control with buttons for on/off, zero, mm/inch conversion, and preset (+/-).
It also includes automatic power-off to conserve battery life and activates instantly when the unit is moved. For digital data collection and integration, the 1122-300 supports optional SPC data output using compatible cables (sold separately).
Key Features:
-
Hook jaws for measuring groove width and spacing inside bores
-
Range: 0.16-12" / 4-300mm
-
Accuracy: ±0.04mm
-
Resolution: 0.01mm / 0.0005"
-
Digital display with metric/inch conversion
-
On/off, zero, and preset (+/-) functions
-
Automatic power-off; movement-activated power-on
-
CR2032 battery included
-
Made of high-grade stainless steel
-
Data output supported (cables 7315-21, 7302-21 – optional)
Specifications:
-
Category: Measuring
-
Subcategory: Digital Calipers
-
Style: Hook Caliper
-
Range: 4-300mm / 0.16-12″
-
Accuracy: ±0.04mm
-
Resolution: 0.01mm / 0.0005″
-
Material: Stainless Steel
-
Brand: INSIZE
Perfect for precision measurement in bores and recessed features, the INSIZE 1122-300 Hook Caliper is a go-to tool for machinists and inspectors needing specialized internal measurement solutions.
