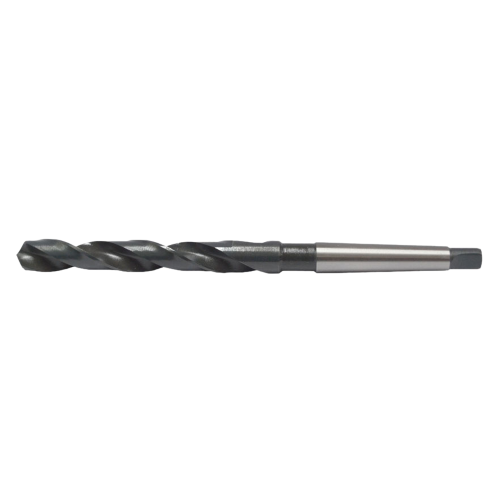

Somta Series 205 – 66.0 mm HSS Morse Taper Shank Drill MT5

SKU: 2056600

Price:
Sale price$1,800.36

Tax included Shipping calculated at checkout

Stock:
Only 1 unit left

Description

Somta Series 205 – 66.0 mm HSS Morse Taper Shank Drill MT5 | 2056600

The SOMTA 2056600 is a 66.0 mm High-Speed Steel Morse Taper Shank Drill (MT5) designed for large-diameter, deep-hole drilling applications. Built to DIN 345 Type N standards, it ensures superior rigidity, accurate concentricity, and efficient chip evacuation, delivering optimal performance in industrial metalworking environments.

Key Features & Benefits

  • HSS Construction – Provides outstanding toughness, wear resistance, and heat tolerance.
  • Morse Taper Shank (MT5) – Ensures solid engagement and maximum torque capacity.
  • Precision-Ground Flutes – Offer smooth chip flow and vibration-free drilling.
  • 118° Standard Point – Provides accurate centering and smooth cutting action.
  • Bright Finish – Enhances lubrication and helps maintain cutting edge sharpness.

Technical Specifications

  • Part No: 2056600
  • Series: 205
  • Tool Type: Morse Taper Shank Drill

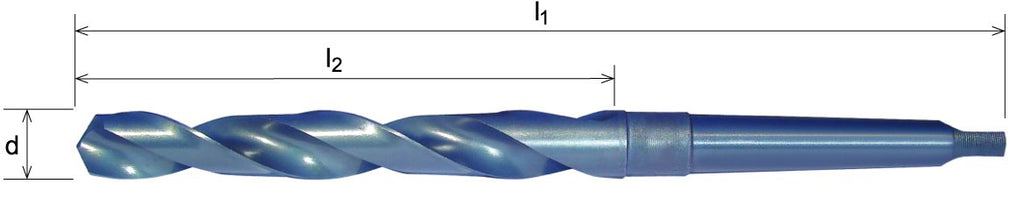

  • Cutting Diameter (d): 66.0 mm
  • Shank Type: Morse Taper No. 5 (MT5)
  • Flute Length (l₂): 245 mm
  • Overall Length (l₁): 432 mm
  • Point Angle: 118° Standard Point
  • Helix Type: Type N (30° Right-Hand Spiral)
  • Material: High-Speed Steel (HSS)
  • Finish: Bright Finish
  • Applications: For deep, precision drilling in steel, cast iron, and alloy materials.

Why Choose SOMTA Cutting Tools?

  • Heavy-Duty Reliability – Engineered for consistent performance in demanding operations.
  • Precision Manufacturing – Ensures true hole geometry and high repeatability.
  • Extended Service Life – Optimized geometry minimizes wear and extends productivity.
  • Trusted Global Quality – SOMTA Tools deliver exceptional performance for professional machinists.

The SOMTA 2056600 delivers power, accuracy, and long-term reliability in large-diameter drilling.
