Description

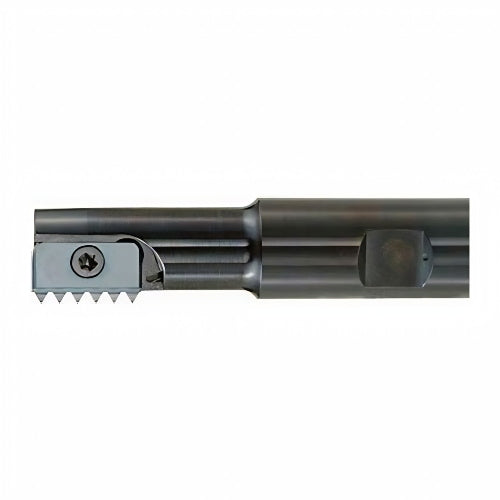

Mill-Thread Toolholder – SR0017H14, Ø17 mm, Single Insert with Internal Coolant
The SR0017H14 Mill-Thread Toolholder is built for high-precision thread milling using a single insert, featuring a 17 mm cutting diameter and internal coolant supply to optimize chip evacuation and reduce heat buildup during machining. Engineered for reliability, it uses a screw-clamping system that ensures secure insert positioning for consistent performance across various materials and applications.

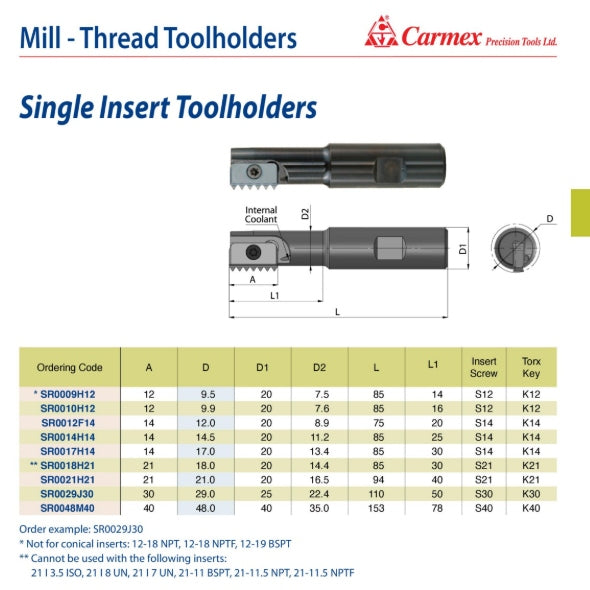

Designed to accommodate 14 mm inserts, the toolholder has a 20 mm shank diameter (D1), 13.4 mm neck diameter (D2), an overall length of 85 mm, and a 30 mm projection length (L1). Compatible with S14 insert screws and K14 Torx keys, the SR0017H14 provides excellent rigidity, tool life, and cutting stability—ideal for both standard and high-performance CNC threading.
Key Features:

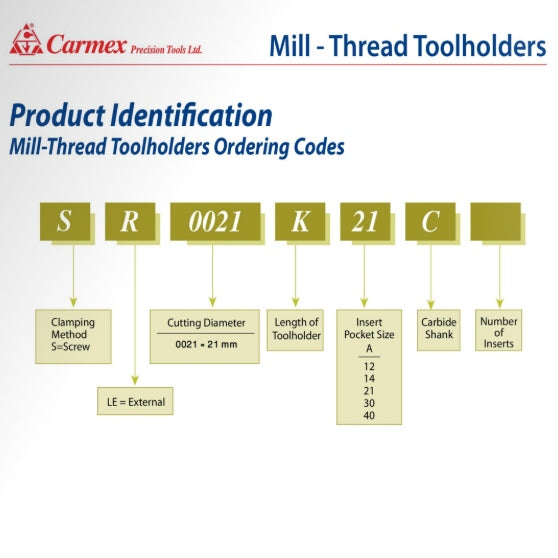

- Ordering Code: SR0017H14
- Toolholder Type: Single Insert Mill-Thread
- Coolant Supply: Internal Coolant Bore
- Clamping Method: Screw
- Insert Pocket Size (A): 14 mm
- Cutting Diameter (D): 17 mm
- D1: 20 mm
- D2: 13.4 mm
- L: 85 mm
- L1: 30 mm
- Insert Screw: S14
- Torx Key: K14
Carmex Precision Tools Ltd. is a globally respected manufacturer of advanced cutting tools. Their extensive product line includes Thread Turning inserts, Mill-Thread holders, Spiral Mill-Thread systems, and Solid Carbide threadmills—engineered for precision, durability, and top-tier performance in modern machining operations.
