Carmex Threadmill Single Insert Toolholder 12mm Cut. SR0012F14

SKU: SR0012F14

Price:
Sale price$523.36

Tax included Shipping calculated at checkout

Stock:
Only 2 units left

Description

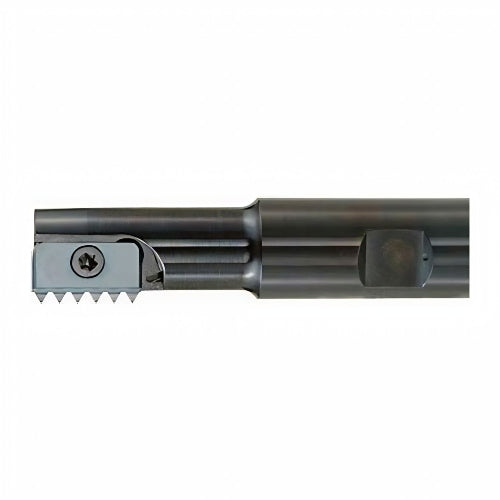

Mill-Thread Toolholder – SR0012F14, Ø12 mm, Single Insert with Internal Coolant

The SR0012F14 Mill-Thread Toolholder is engineered for precise thread milling applications on CNC machines, combining a 12 mm cutting diameter with a built-in internal coolant channel for optimal chip evacuation and thermal control. Designed for single insert use, it features a secure screw-clamping system to ensure consistent performance and tool stability, even under high-load machining conditions.

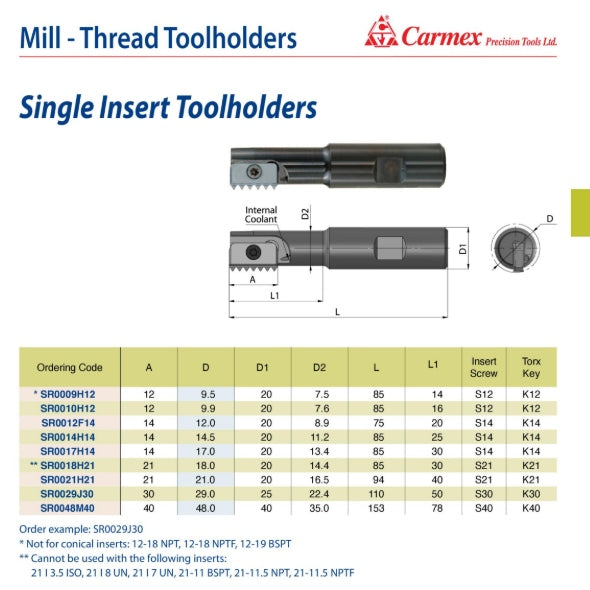

This toolholder supports 14 mm insert pockets and includes robust dimensions for rigid threading: a 20 mm D1 shank diameter, 8.9 mm D2 neck diameter, and an overall length of 75 mm with a 20 mm L1 projection. Compatible with S14 insert screws and K14 Torx keys, it is a reliable solution for threading a wide range of materials with precision and repeatability.

Key Features:

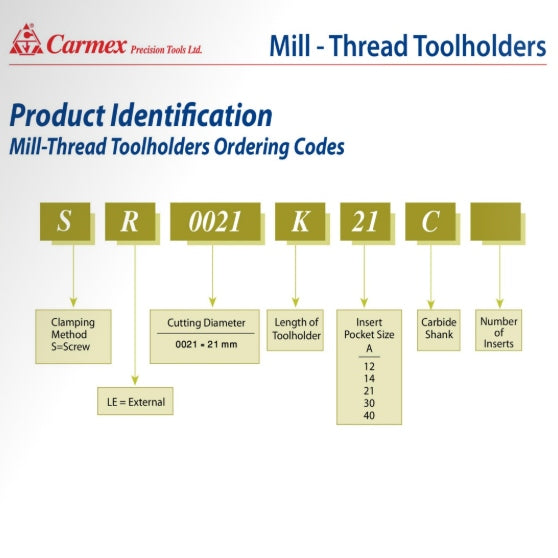

  • Ordering Code: SR0012F14
  • Toolholder Type: Single Insert Mill-Thread
  • Coolant Supply: Internal Coolant Bore
  • Clamping Method: Screw
  • Insert Pocket Size (A): 14 mm
  • Cutting Diameter (D): 12 mm
  • D1: 20 mm
  • D2: 8.9 mm
  • L: 75 mm
  • L1: 20 mm
  • Insert Screw: S14
  • Torx Key: K14

Carmex Precision Tools Ltd. is a globally trusted name in threading and milling innovation. Their comprehensive lineup includes Thread Turning inserts, Mill-Thread systems, Solid Carbide and Spiral Mill-Thread tools designed to deliver high performance, reliability, and machining precision across all industries.
