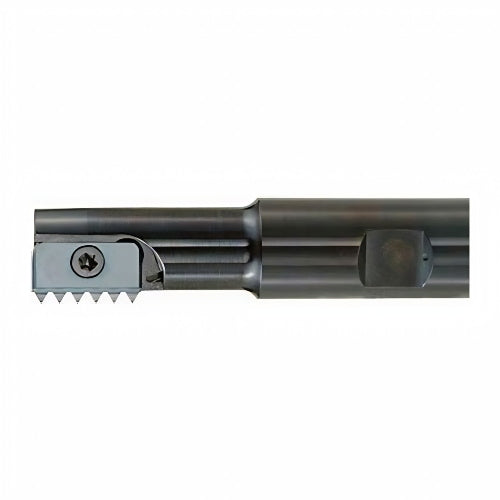

Mill-Thread Toolholder – SR0010H12, Ø9.9 mm, Single Insert with Internal Coolant
The SR0010H12 Mill-Thread Toolholder is designed for accurate and efficient thread milling operations on CNC machines. Featuring a 9.9 mm cutting diameter and internal coolant bore, it ensures effective heat dissipation and chip evacuation during threading processes. This single insert toolholder uses a secure screw-clamping method for reliable insert retention and consistent machining results, even in small and precise threading applications.

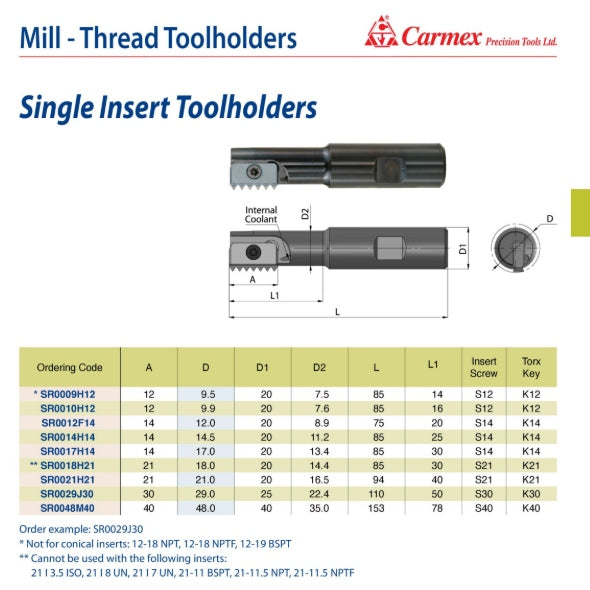

Built to accommodate size 12 inserts, the toolholder includes a 20 mm D1 body and a 7.6 mm D2 neck, delivering the strength and reach required for stable cutting. It has a total length of 85 mm with a 16 mm protrusion (L1), and is compatible with S12 insert screws and K12 Torx keys, offering ease of use and enhanced toolholding stability.
Key Features:

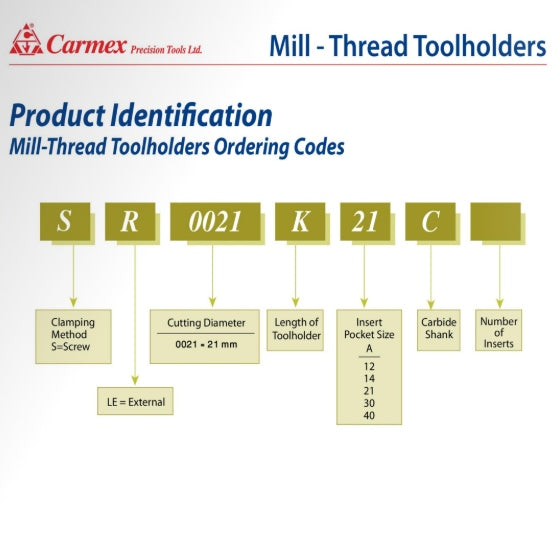

- Ordering Code: SR0010H12
- Toolholder Type: Single Insert Mill-Thread
- Coolant Supply: Internal Coolant Bore
- Clamping Method: Screw
- Insert Pocket Size (A): 12 mm
- Cutting Diameter (D): 9.9 mm
- D1: 20 mm
- D2: 7.6 mm
- L: 85 mm
- L1: 16 mm
- Insert Screw: S12
- Torx Key: K12
Carmex Precision Tools Ltd. is a globally recognized provider of high-performance threading solutions. With a complete product line including Thread Turning inserts and holders, Mill-Thread tools, Spiral Mill-Thread, and Solid Carbide threadmills, Carmex delivers innovation, precision, and reliability for modern machining applications worldwide.
