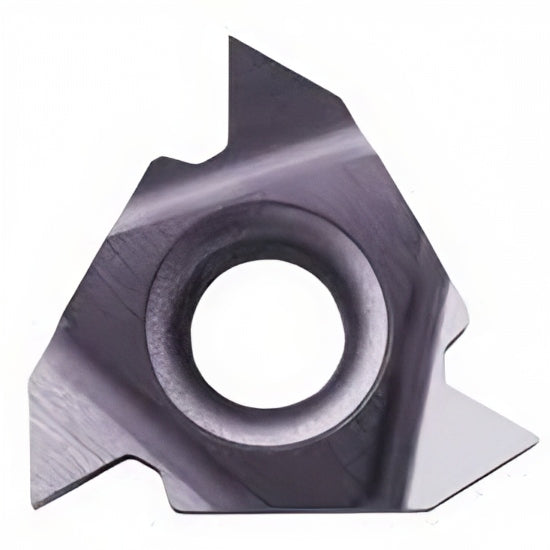

Internal Thread Turning Insert – UN (Unified) 60°
The Unified (UN) Internal Thread Turning Insert is engineered for precision machining of UNC, UNF, UNEF, and UNS thread forms with a 60° profile. Designed for 4 TPI coarse threads, this full-profile insert forms the crest, root, and flanks of the thread in a single pass delivering strong, pressure-tight connections for components used in mechanical, structural, and general engineering applications.
Made from durable BMA-grade carbide, the insert provides outstanding wear resistance, heat stability, and tool life, even under high-load machining. With dimensions of X = 1.8 mm and Y = 2.7 mm, it is optimized for internal threading in larger bore diameters, ensuring consistent cutting performance and thread profile accuracy.
Key Features:
- Ordering Code: 27 IR 4 UN BMA
- Thread Type: UN – Unified (UNC, UNF, UNEF, UNS)
- Profile: 60° Full Form
- Insert Type: Internal
- Hand: Right Hand
- L: 27 mm
- I.C.: 5/8"
- Pitch: 4 TPI
- X: 1.8 mm
- Y: 2.7 mm
- Carbide Grade: BMA
- Applications: Internal Thread Turning for Unified Threads in Mechanical and Structural Components
- Key Advantage: Accurate full-profile threading with superior wear resistance and consistency for large pitch UN threads
Carmex Precision Tools Ltd. is a globally recognized leader in the development and manufacturing of high-quality cutting tools. With a strong focus on innovation and precision, Carmex offers a comprehensive range of solutions for threading, turning, and milling applications. From Thread Turning Inserts and Toolholders to Mill Thread systems and Solid Carbide threadmills, Carmex products are trusted by professionals worldwide for their reliability, accuracy, and exceptional performance across diverse industries and materials.
