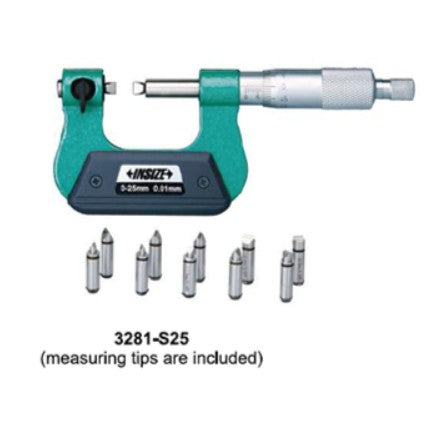

INSIZE 3281-S25 Metric Screw Thread Micrometer – 0-25mm Range, 6 Tip Sets Included, 60° Threads

SKU: 3281-S25

Price:
Sale price$722.12

Tax included Shipping calculated at checkout

Stock:
Only 3 units left

Description

Product Description:

The INSIZE 3281-S25 Metric Screw Thread Micrometer is purpose-built for accurately measuring the pitch diameter of screw threads. Covering a range of 0–25mm, this precision tool is supplied with six interchangeable pairs of measuring tips, making it suitable for a wide variety of metric and unified threads with a 60° thread angle.

Designed for ease of use and long-term accuracy, it features a non-rotating spindle and ratchet stop for consistent measurement force. The micrometer reads in 0.01mm graduations, ensuring fine resolution for critical measurements. While this model does not include setting standards (due to the short range), it is compatible with optional 55° setting standards for additional versatility.

Key Features:

  • Range: 0–25mm

  • Graduation: 0.01mm

  • Non-rotating spindle for consistent contact and accuracy

  • Ratchet stop for precise, repeatable measurements

  • Includes 6 pairs of measuring tips for 60° threads:

    • 0.4–0.5mm / 64–48 TPI

    • 0.6–0.9mm / 44–28 TPI

    • 1–1.75mm / 24–14 TPI

    • 2–3mm / 13–9 TPI

    • 3.5–5mm / 8–5 TPI

    • 5.5–7mm / 4.5–3.5 TPI

  • Material: Stainless steel

  • Standard Included: Supplied without setting standard (0–25mm range); compatible with 60° and optional 55° setting standards

Specifications:

  • Type: Screw Thread Micrometer

  • Measurement Range: 0–25mm

  • Graduation: 0.01mm

  • Material: Stainless steel

  • Data Output: No

  • Included Accessories: 6 pairs of 60° thread measuring tips

  • Optional Accessories: 55° setting standards

  • Brand: INSIZE

Ideal for machinists, inspectors, and toolmakers, the INSIZE 3281-S25 delivers precision, durability, and flexibility for reliable screw thread measurement in workshop or lab environments.
